Safety and Regulatory Compliance in EV Charging Station Design

Safety and regulatory compliance are fundamental to the successful design and operation of EV charging stations. With the increasing adoption of electric vehicles, ensuring that stations meet strict safety standards and adhere to regulatory requirements is essential to protect users, operators, and infrastructure. From fire prevention measures to compliance with industry standards, a robust focus on safety ensures reliable operations and builds trust among users.

Ensuring Safety in EV Charging Station Design

Safety in EV charging station design begins with adhering to established electrical codes and standards. These guidelines govern the proper installation, operation, and maintenance of equipment, ensuring that stations can operate without posing risks to users or the surrounding environment.

• Electrical Installation Safety: Proper wiring, grounding, and protection systems are critical for preventing electrical hazards such as shocks, surges, and equipment failures. Licensed electricians and certified contractors should perform all installations to ensure compliance with regulations.
• User Safety Features: Chargers must include user-friendly features like insulated cables, weatherproof enclosures, and clear, accessible instructions to prevent misuse and accidents.
• Station Durability: Robust construction materials and designs protect stations from environmental stressors like extreme weather, vandalism, or accidental collisions. For example, bollards or protective barriers shield chargers from vehicular damage.
• Emergency Accessibility: Stations must have clear, accessible emergency stop mechanisms to immediately cut power during an incident. Signage should guide users on how to respond in emergencies, further ensuring safety.

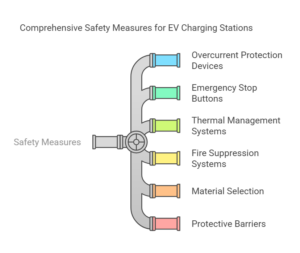

Fire Prevention and Electrical Safety

Fire safety is a top priority in EV charging station design, as high-power electrical systems inherently carry risks if not properly managed. Comprehensive fire prevention measures help mitigate these risks and ensure safe operation.

• Overcurrent Protection Devices (OCPDs): Circuit breakers and fuses prevent electrical overloads that could lead to overheating or fires. These devices are designed to cut power automatically when current levels exceed safe thresholds.
• Emergency Stop Buttons: Stations must be equipped with clearly marked emergency stop buttons that immediately disconnect power in case of fire, equipment failure, or other emergencies. These buttons should be easily accessible and intuitive to use.
• Thermal Management Systems: Advanced chargers incorporate thermal sensors that monitor temperature levels and shut down the system if overheating occurs. Proper ventilation and cooling mechanisms further reduce the risk of heat-related hazards.
• Fire Suppression Systems: Installing fire extinguishers or automatic fire suppression systems near high-power chargers adds an additional layer of safety. Operators should choose suppression agents that are safe for electrical fires, such as clean agent systems.
• Material Selection: Chargers should be constructed from flame-retardant materials to minimize the spread of fire in case of an incident. Cable insulation and enclosures must meet fire resistance standards for added protection.

Protective Barriers: Bollards or other physical barriers around charging equipment help prevent accidental vehicle collisions that could damage electrical components and lead to fires.

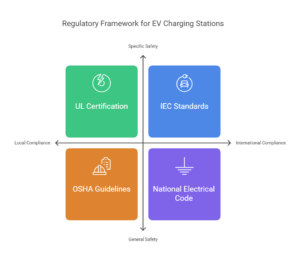

Compliance with Industry Standards

Industry standards establish the foundation for safety and regulatory compliance in EV charging station design. These guidelines ensure consistent practices across manufacturers and operators, fostering a safer and more reliable charging ecosystem.

• National Electrical Code (NEC): The NEC provides comprehensive guidelines for electrical installations, including those specific to EV charging stations. Key sections cover proper wiring, grounding, and protection measures, ensuring that installations meet safety benchmarks.
• Underwriters Laboratories (UL) Certification: UL certifies EV chargers and related equipment to verify that they meet rigorous safety standards. UL certification ensures that chargers have been tested for electrical safety, durability, and reliability under various operating conditions.
• International Electrotechnical Commission (IEC) Standards: IEC standards focus on the global interoperability of EV chargers, addressing both hardware and software compliance. Adhering to IEC standards ensures that stations can serve diverse EV models and charging protocols.
• Occupational Safety and Health Administration (OSHA): OSHA guidelines protect workers involved in the installation and maintenance of charging stations. These include personal protective equipment (PPE) requirements and training for handling high-voltage systems.
• Local and Regional Regulations: Compliance with local building codes, zoning laws, and environmental regulations is critical to avoid legal issues and ensure smooth project approval. These rules often include accessibility requirements, such as ADA compliance, and environmental impact assessments.

Benefits of Adhering to Safety and Regulatory Compliance

Meeting safety and compliance standards offers numerous advantages for operators and users:

1. Risk Mitigation: Proper design and adherence to regulations reduce the likelihood of accidents, equipment failures, and legal liabilities.
2. User Trust and Confidence: Compliant stations reassure users that the infrastructure is safe and reliable, fostering positive experiences and loyalty.
3. Operational Efficiency: Standardized practices streamline maintenance and reduce downtime, ensuring consistent availability of charging services.
4. Legal Protection: Compliance with industry and governmental standards minimizes exposure to fines, lawsuits, and reputational damage.
5. Insurance Benefits: Stations that meet recognized safety standards may qualify for reduced insurance premiums, lowering operational costs.

Challenges in Ensuring Safety and Compliance

Despite its importance, ensuring safety and compliance in EV charging station design presents several challenges:

• High Costs of Compliance: Meeting rigorous standards often requires significant investment in materials, certifications, and skilled labor. However, these costs are offset by the long-term benefits of safety and reliability.
• Keeping Up with Evolving Standards: As technology advances, standards and regulations are updated to address emerging risks. Operators must stay informed and adapt their practices accordingly.
• Integration of New Technologies: Incorporating advanced features like wireless charging or vehicle-to-grid (V2G) systems introduces additional safety considerations that must be addressed within existing regulatory frameworks.
• Regional Variations in Standards: Differences in local, national, and international regulations can complicate the design and implementation process, especially for operators with stations in multiple jurisdictions.

Future Trends in Safety and Regulatory Compliance

The future of safety and regulatory compliance in EV charging station design is shaped by advancing technologies and increasing emphasis on user protection:

1. Smart Monitoring Systems: Real-time diagnostics and remote monitoring will enable operators to detect and address safety risks proactively.
2. Integration of AI in Risk Management: Artificial intelligence will analyze data from multiple stations to predict potential hazards and optimize safety measures.
3. Dynamic Standards for New Technologies: As innovations like ultra-fast charging and V2G systems become widespread, regulatory bodies will establish new guidelines to address their unique safety challenges.
4. Global Standardization Efforts: Collaborative efforts to unify international standards will simplify compliance for operators, fostering a safer global charging network.

Safety and regulatory compliance are the cornerstones of EV charging station design, ensuring that infrastructure is both safe and reliable for users and operators. By prioritizing fire prevention, electrical safety, and adherence to industry standards, stations can minimize risks and build trust within the EV ecosystem. As technology and regulations continue to evolve, maintaining a proactive approach to safety will be critical in supporting the growth of sustainable and secure EV infrastructure.
